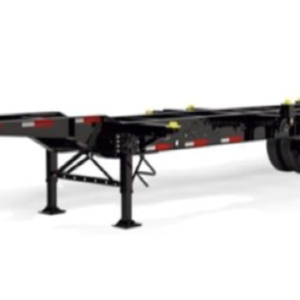

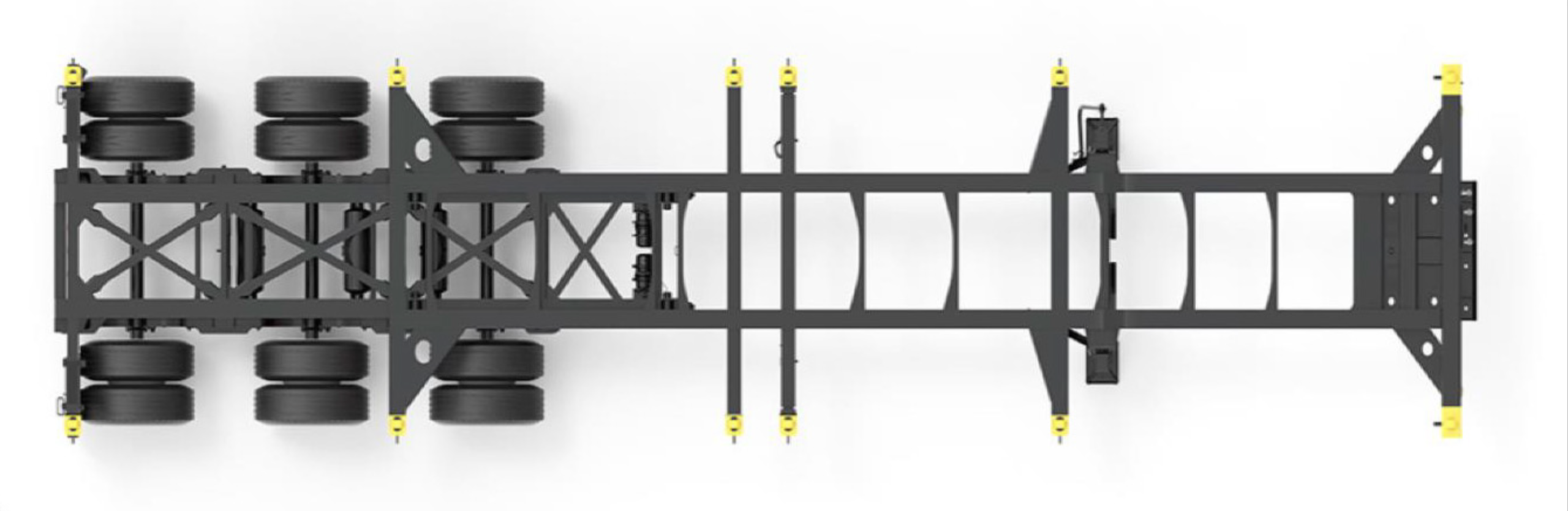

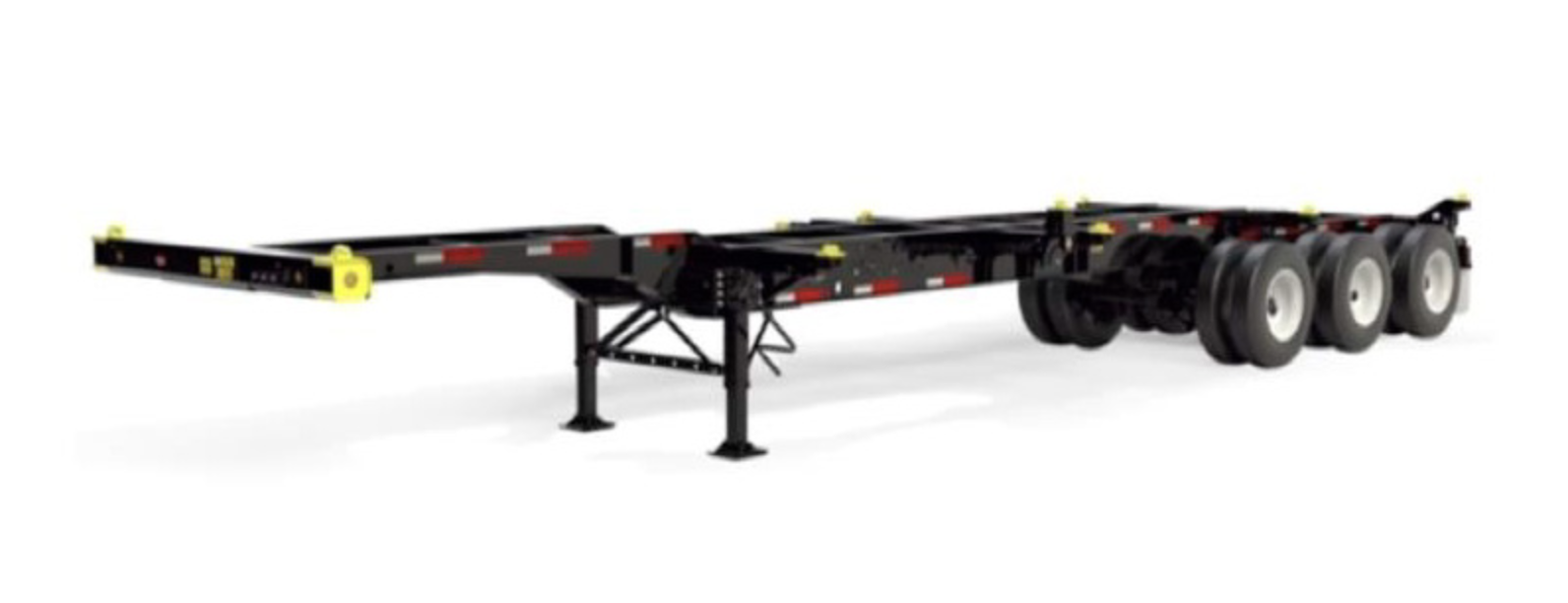

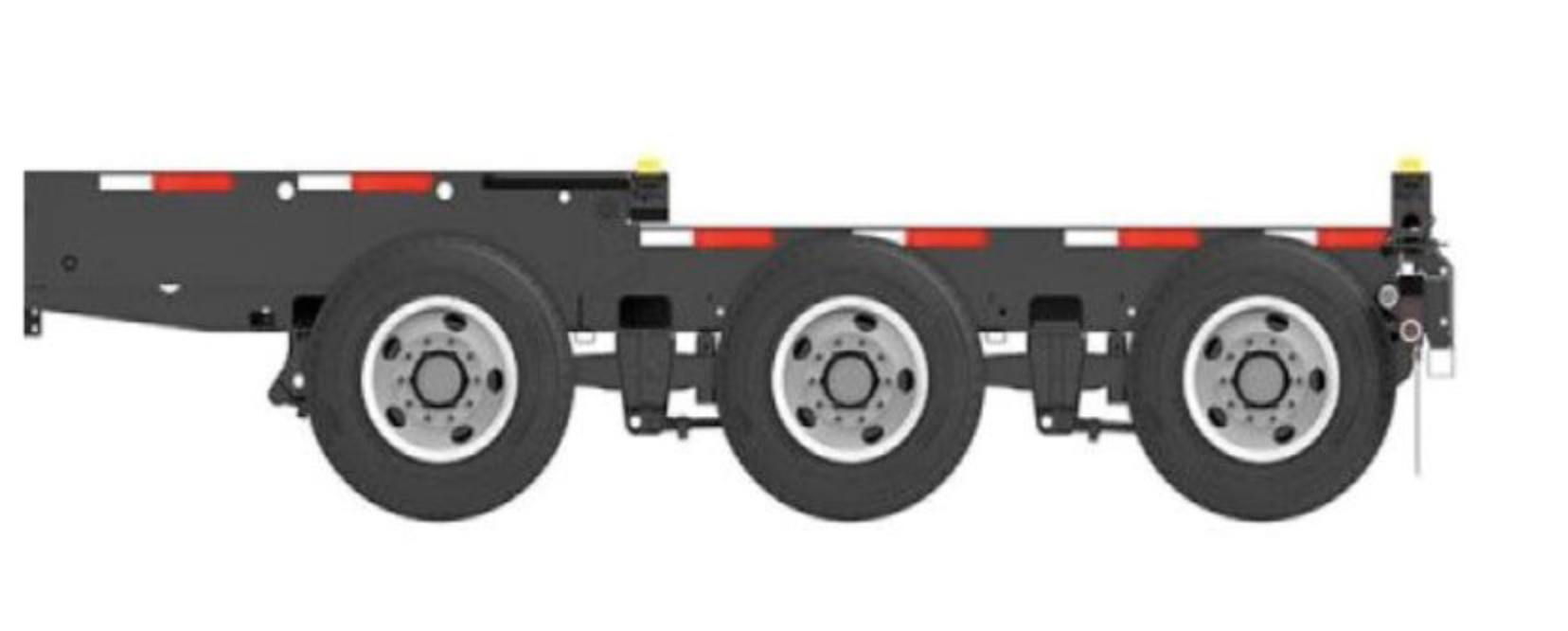

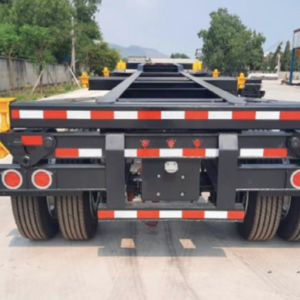

20–40 Ft Tridem Combo Slider Container Chassis

Product Overview

The 20–40 Ft Tridem Combo Slider Container Chassis is an adjustable container chassis designed to accommodate both 20-foot and 40-foot shipping containers. Its sliding configuration allows the chassis length to be adjusted for different container sizes while maintaining a heavy-duty frame, tandem/tridem running gear, and container transport components.

Built with fabricated structural steel beams, 22,500-lb-capacity axles, mechanical suspension, ABS-equipped braking components, LED lighting, and ISO-compatible electrical connections, this chassis is designed for commercial container transportation applications.

The chassis is available in a black finish, with customer-specific markings and signs available according to the agreed order requirements.

Condition: New
Chassis Type: Tridem Combo Slider
Container Compatibility: 20 ft and 40 ft containers
Primary Keyword: 20–40 ft tridem combo slider container chassis

Key Features

• Adjustable chassis configuration for 20 ft and 40 ft shipping containers
• Slider design with approximately 32.7 ft retracted and 41.1 ft extended overall length
• Tridem axle configuration
• Three-leaf mechanical suspension
• OEM Rhino ABS axles
• 22,500-lb axle capacity
• ABS-equipped trailer braking system

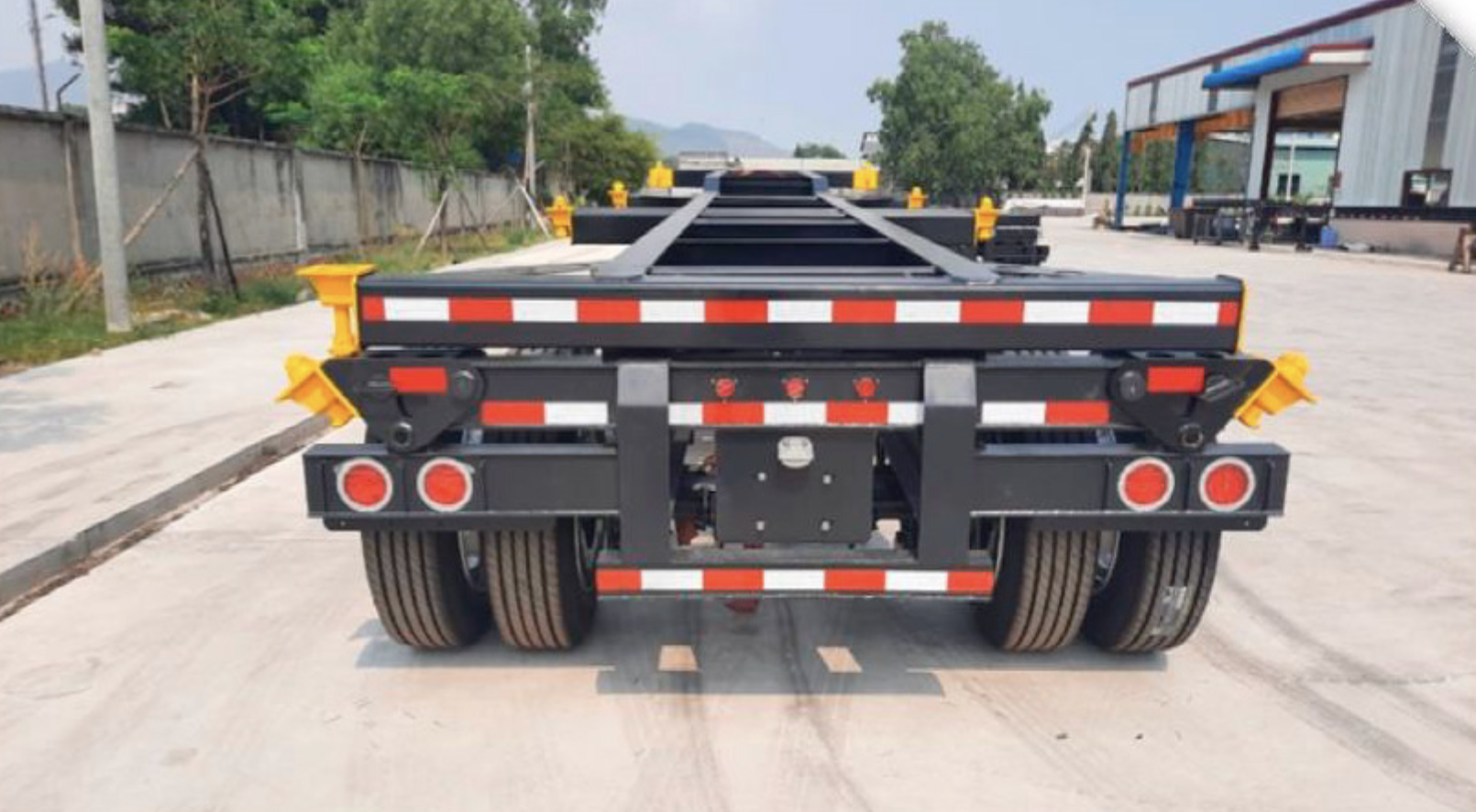

• 12V mounted LED lighting
• ISO 7-way electrical connector
• FUWA two-speed landing gear
• Fabricated H-beam main structure
• ASTM A572 Grade 50 steel or equivalent, according to manufacturer specification
• 22.5 × 8.25 rims with 10-hole ISO configuration
• Black finish
• Customer-specific markings and signage available

Technical Specifications

Specification	Details

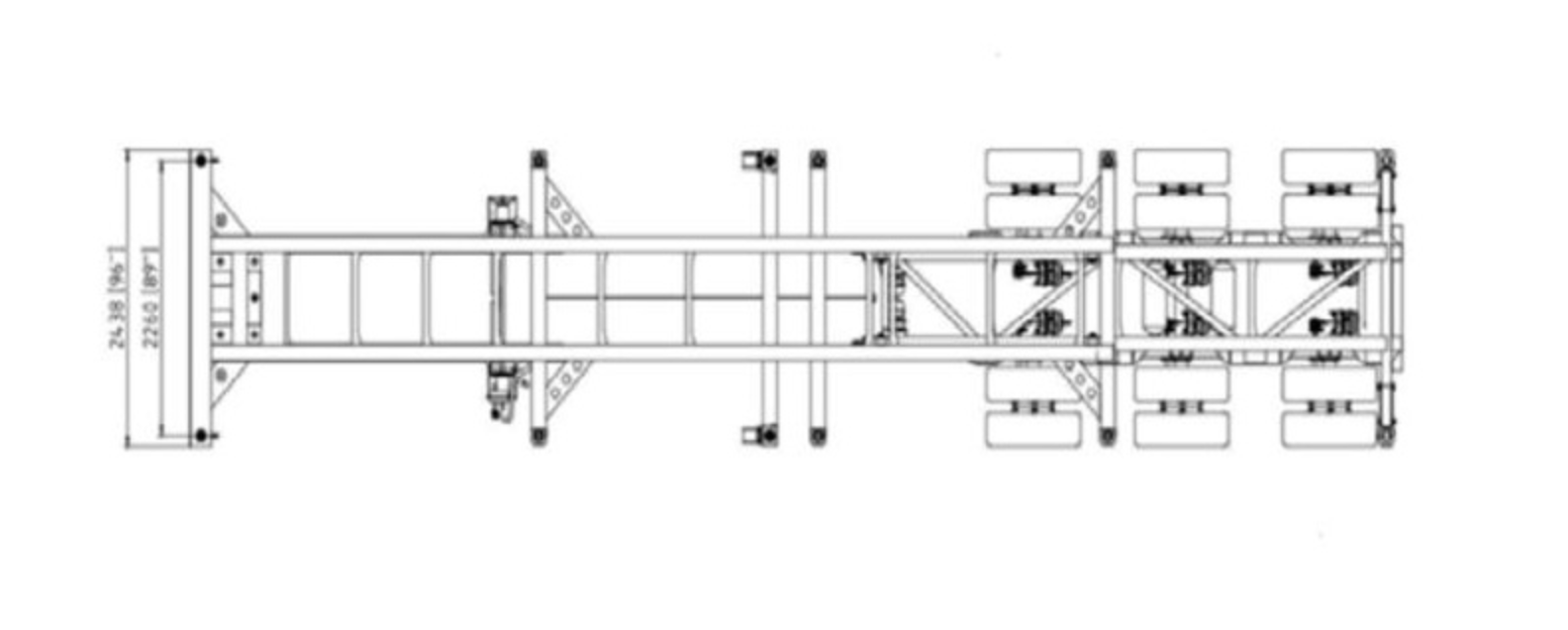

Overall Length	32.7 ft retracted / 41.1 ft extended
Overall Width	8 ft
Overall Height	4.5 ft
Fifth Wheel Height	47 in ± 1 in
Rear Deck Height	48 in ± 1 in
King Pin Setting	18 in
Axle Spacing	61 in
Tail Location	88 3/16 in from center of tridem to rear face of rear bolster
Tare Weight	10,700 lbs ± 5%
Payload – 20 ft Configuration	66,100 lbs
Payload – 40 ft Configuration	74,100 lbs
GVWR – 20 ft Configuration	76,800 lbs
GVWR – 40 ft Configuration	84,800 lbs
Main Beams	Fabricated H-beam, ASTM A572 Grade 50 or equivalent
Electrical System	Mounted LED lighting, 12V
Electrical Connector	10–30V ISO 7-way connector, Phillips brand
Landing Gear	FUWA, 61,729-lb capacity, 2-speed, 19-in travel
Landing Gear Shoes	Low “T” shoes
Landing Gear Handle	Driver’s-side crank handle
Finish	Black
Marking	Markings and signs according to customer requirements

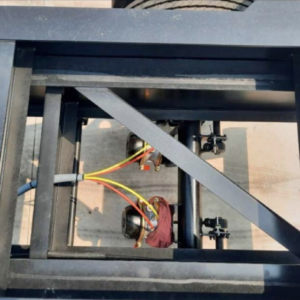

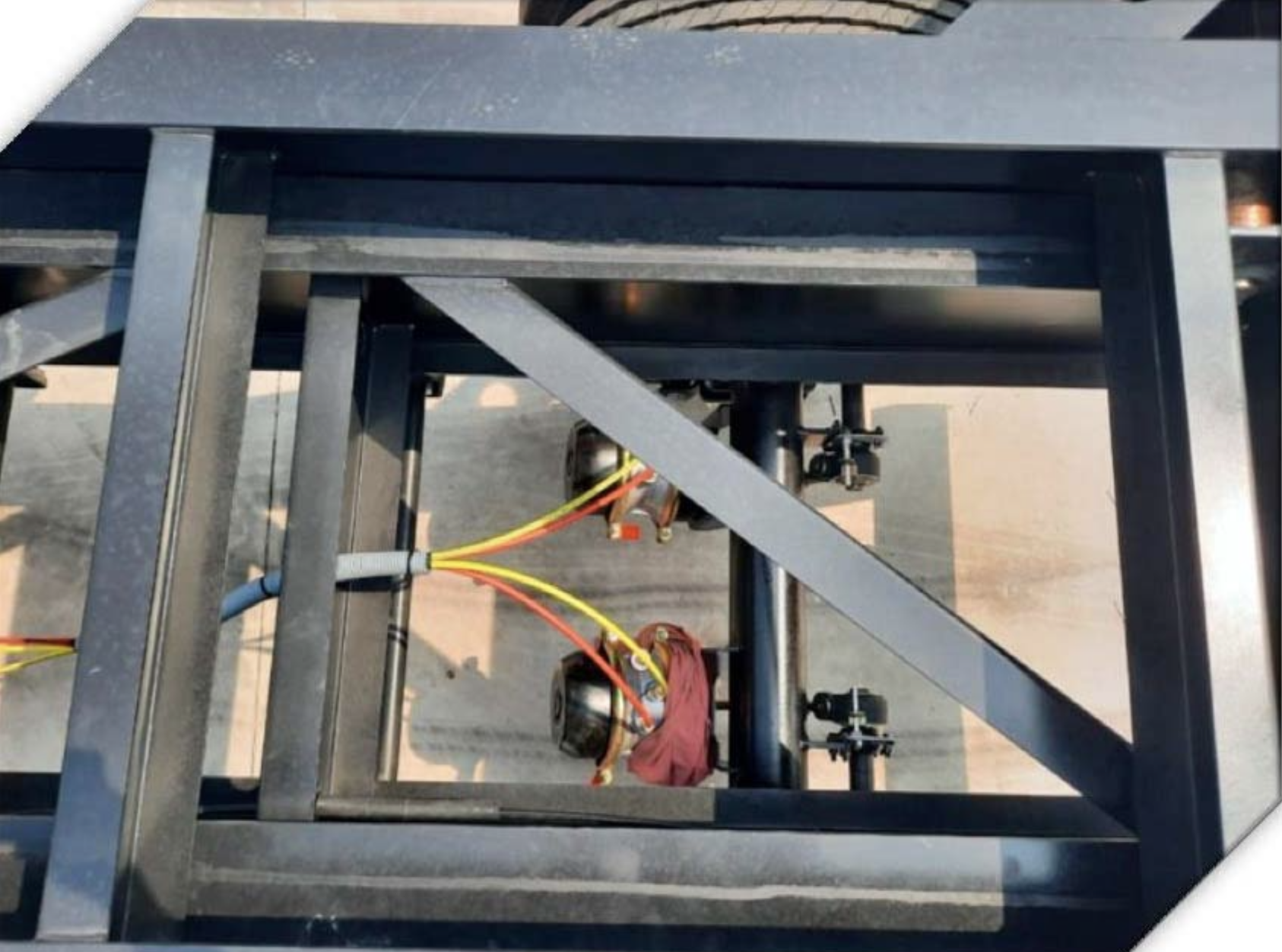

Braking System

The chassis is equipped with a manufacturer-specified braking configuration that includes:

• SHUN ANDA 2S/2M ABS system
• Dual-line trailer brake system
• Sealco valve
• 30/30 brake chambers
• Phillips ISO glad-hands
• 3/8-in yellow control air line
• 3/8-in red supply air line

Wheels and Tires

Component	Specification
Rims	22.5 × 8.25, 10-hole ISO
Tires	Casumina, 255/70R22.5, 16-ply
Tire Origin	Made in Vietnam

Axles

The chassis uses OEM Rhino ABS axles with the following manufacturer-provided specifications:

• 5-in round axle
• 22,500-lb capacity per axle
• 71.5-in track
• 10 hub-piloted hubs
• Outboard-mounted cast-steel drums
• ABS configuration

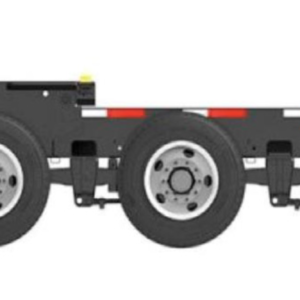

Suspension

The chassis uses a mechanical suspension system with:

• 61-in axle spread
• Three-leaf springs
• Tridem axle configuration

Container Compatibility

The adjustable slider configuration is intended for transportation of compatible 20-foot and 40-foot ISO shipping containers. Container fit and permissible loading should be confirmed against the chassis manufacturer’s specifications before purchase.

Typical Applications

The 20–40 Ft Tridem Combo Slider Container Chassis can be used for applications such as:

• 20 ft shipping container transportation
• 40 ft shipping container transportation
• Intermodal container hauling
• Commercial container logistics
• Freight and transportation operations
• Container yard and terminal operations
• Port and intermodal transportation applications
