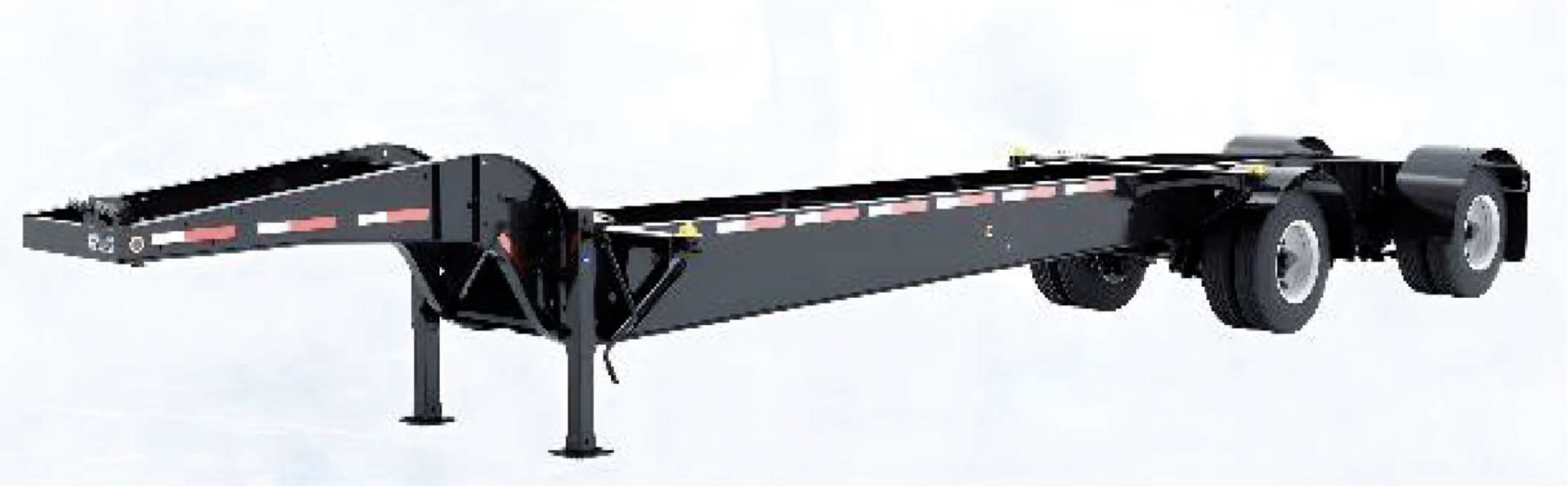

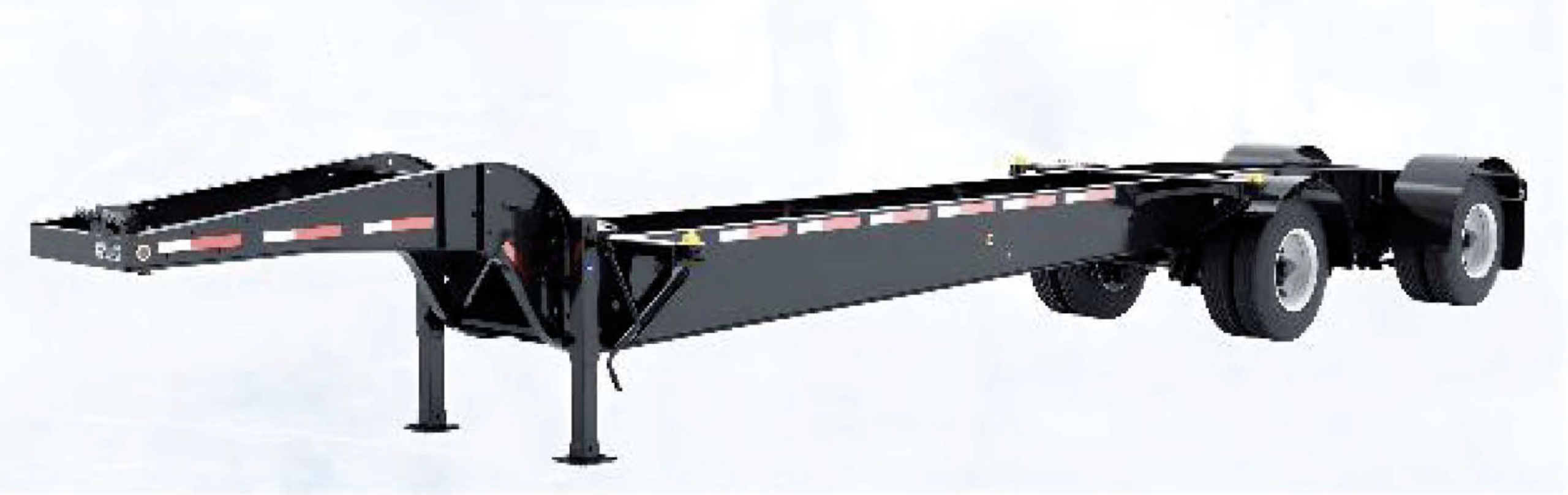

43ft ISO Tank Container Chassis – Heavy Duty 4 Twist Lock Intermodal Tank Container Trailer

Product Description

The 43ft ISO Tank Container Chassis with 4 Twist Locks is a commercial-grade intermodal trailer engineered for the safe transportation of standard ISO tank containers. Built with a reinforced ASTM A572 Grade 50 steel frame, this chassis is designed for freight carriers, chemical transport fleets, logistics providers, ports, and intermodal operations requiring dependable tank container transport.

Equipped with four ISO twist locks, this ISO tank chassis trailer securely fastens compatible tank containers during transit. The tandem axle configuration, commercial-grade electrical system, and corrosion-resistant construction make it suitable for demanding highway, port, rail, and industrial transportation environments.

Designed to meet applicable U.S. transportation standards, this 43ft tank container chassis delivers reliable performance for commercial container hauling and fleet operations.

Product Features

• Trailer Type: ISO Tank Container Chassis
• Overall Length: 43 ft
• Overall Width: 96 29/64 in
• Container Compatibility: Standard ISO Tank Containers
• Container Securement: Four ISO Twist Locks
• Frame Construction: Fabricated H-Beam using ASTM A572 Grade 50 steel
• Fifth Wheel Height: 48 in (±1 in)
• Rear Deck Height: 44 in (±1 in)
• King Pin Setting: 16 in
• Axle Spacing: 109 in
• Rear Tail Location: 78 27/64 in from tandem axle center
• Approximate Tare Weight: 7,340 lbs (±5%)
• Maximum Payload: 59,660 lbs
• Gross Vehicle Weight Rating (GVWR): 67,000 lbs
• Lighting System: 12V LED lighting
• Electrical Connector: ISO 7-way connector (Phillips compatible)
• Compliance: Manufactured to meet applicable U.S. transportation requirements

Key Benefits

• Designed for transporting standard ISO tank containers
• Four twist-lock system provides secure container retention
• High-strength ASTM A572 Grade 50 steel construction
• Commercial-grade LED lighting system
• Heavy-duty chassis designed for freight and logistics applications
• Suitable for highway, port, rail, and terminal operations
• Corrosion-resistant finish for extended service life

Common Applications

• ISO tank container transportation
• Chemical logistics
• Food-grade liquid transport
• Industrial liquid hauling
• Intermodal freight operations
• Port terminal transportation
• Rail container movement
• Commercial trucking fleets
• Bulk liquid logistics
• Container leasing operations
